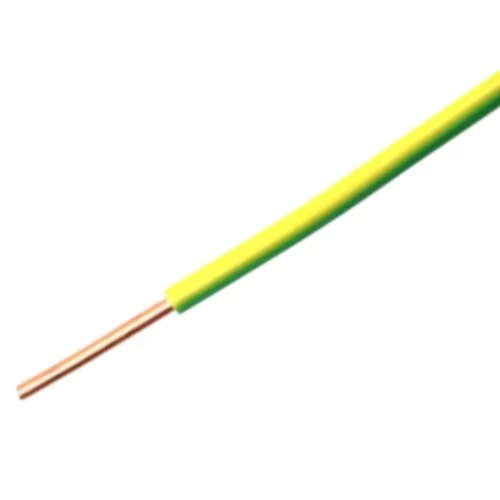

BAHRA 10 sq mm Wire 450/750 Volts, Solid Copper PVC 90°C Insulation, Yellow/Green Color, 300 Feet Length
(649 Product Views)
Solid copper electrical wire (CU/PVC), 10 mm2 cross section, 450/750 volts, color is yellow/green, manufactured by Bahra Company, the insulation prevents harmful UV rays from damaging the wire, available in a variety of sizes and colors with highest quality and best prices.
Product description
Electrical wire (CU/PVC), manufactured by Bahra Cables Company, according to British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-U
- Conductor: Solid Copper
- Insulation Material: PVC 90°C (type TI-1 to BS EN 50363-3)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm
- Number of Wires x Nominal Wire Diameter: 1 X 3.57 mm
- Maximum DC Resistance at 20°C: 1.83 ohm/km
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 5.57 mm
- Current Carrying Capacity (PVC 90°C): 68 Ampere
- Standard Length: 100 Yards/Coil
- Insulation Color: Yellow/Green
- Standards: 60227 IEC 01, BS EN 50525-2-31 and SASO 1320
