Electrical Wire Coil 1.0mm2 300/500V, Solid Copper Conductor, PVC insulated, Length 300ft | Alfanar
(882 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

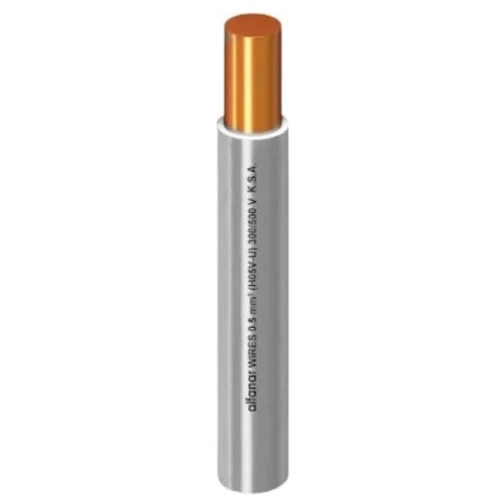

Electrical Wire Coil 1.0mm2 300/500V, Solid Copper Conductor, PVC insulated, Length 300ft. The insulation prevents electric current leakage and provides protection from various environmental factors such as moisture and UV rays. Gray color. Suitable for internal power circuits. Produced by Alfanar.
Product description
Solid copper electrical wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor Shape: Solid
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 300/500 volts
- Conductor Size (Cross-Sectional Area): 1.0 mm²
- Conductor Diameter: 1.13 mm
- Max DC Conductor Resistance at 20°C: 18.1 ohm/km
- Nominal Insulation Thickness: 0.6 mm
- Approx Overall Diameter: 2.3 mm
- Weight: 14 kg/km
- Length: 100 yards
- Color: Grey
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
