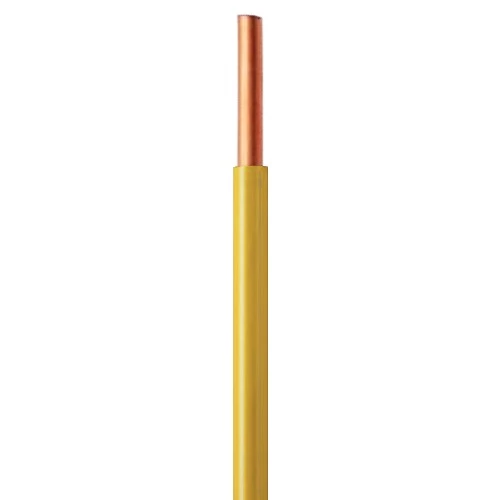

Single Core Solid Copper Electric Cable CU/PVC, 10mm Size, 450/750V, Yellow | Jeddah Cables
(654 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Single core solid copper electric cable with PVC insulation, 10mm size, 450/750V, featuring excellent resistance to harsh environmental conditions, which slows down wire degradation and ensures long-term performance. Suitable for industrial applications and large-scale projects requiring high reliability. Yellow color. Produced by Jeddah Cables.
Product description
Solid copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor: Solid Copper
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm²
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 5.6 mm
- Weight: 109 kg/km
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Current Rating Laid in Conduits: 60 Ampere
- Current Rating Laid in Free Air: 89 Ampere
- Color: Yellow
- Standard: IEC 60227
