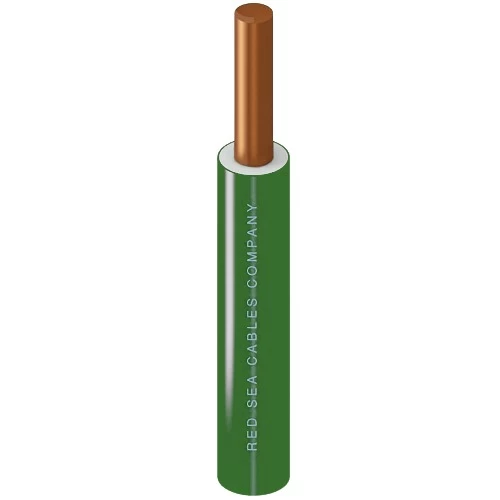

1.5mm NYA Wire 450/750V, Solid Copper Conductor, PVC 90°C Insulated, Green, 100 Yards | Red Sea Cables
(508 Product Views)
Solid copper wire (CU/PVC), 1.5 mm2 cross section, 1000Vac, Green, It is characterized by competitive prices compared to other types of wires, making it an effective economic option for various electrical projects, produced by Red Sea Cables Company.
Product description
Solid copper electrical wire (CU/PVC), manufactured by Red Sea Cables Company according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-U
- Conductor: Solid Copper
- Insulation Material: PVC 90°C
- Voltage: up to 1000Vac or upto 750Vdc
- Conductor Size (Cross-Sectional Area): 1.5 mm2
- Nominal Insulation Thickness: 0.7 mm
- Approx Overall Diameter: 2.9 mm
- Maximum DC Resistance at 20°C: 12.10 ohm/km
- Current Carrying Capacity (PVC 90°C): 22 Ampere
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Insulation Color: Green
- Standards: SASO 1320, IEC 60227, BS 6004
