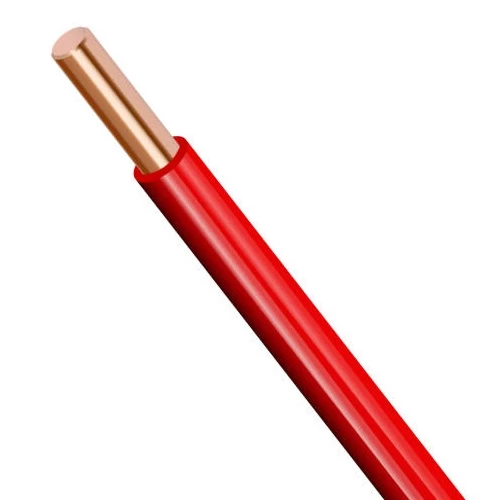

Solid copper electric american wire (AWM), 14 AWG conductor size, Length 2500 ft, manufactured by Asharqiyah Cables, Specially designed for use in internal connection of devices.
Product description
Solid copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Solid Copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 14 AWG
- Wire Diameter : 1.63 mm
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 4.10 mm
- Approx Weight : 35 kg/km
- Insulation Color : Red
- Standard Length : 2500 feet on a plastic spool or wooden drum
- Standards : UL STYLE 1028, UL 758, UL E505934
Additional Information▼
Additional Technical Information
This 14 AWG electrical wire has a cross-sectional area of 2.08 mm² (converted from 14 AWG). The AWG (American Wire Gauge) measurement system is used to determine wire gauges in America. For conversion to millimeters, the following table can be used:
| Size (AWG) | Cross-sectional Area (mm²) | Diameter (mm) |
|---|---|---|
| 14 | 2.08 | 1.63 |
Note: The internal connection of electrical devices should be made with an appropriate wire size according to the required electrical load. It is recommended to use this wire for currents up to 15 amps in residential and industrial electrical circuits within the Kingdom of Saudi Arabia.
Buying Guide for 14 AWG Electrical Wire
When selecting 14 AWG electrical wire for your needs, pay attention to:
- Proper use: This wire is suitable for internal connections in household and industrial appliances such as air conditioners and washing machines.
- Local standards: Ensure that the wire complies with the specifications of the Saudi Standards, Metrology and Quality Organization.
- Quality: Eastern Cables wire is certified according to UL STYLE 1028, UL 758, UL E505934 standards, ensuring high quality and safety of use.
Frequently Asked Questions about Wire Sizes
14 AWG wire is used in medium load applications, providing suitable electrical current without excessive voltage drop. This wire is suitable for electrical circuits that consume power up to 15 amps. For safe connections, it is recommended to use this wire with 15 amp circuit breakers.
