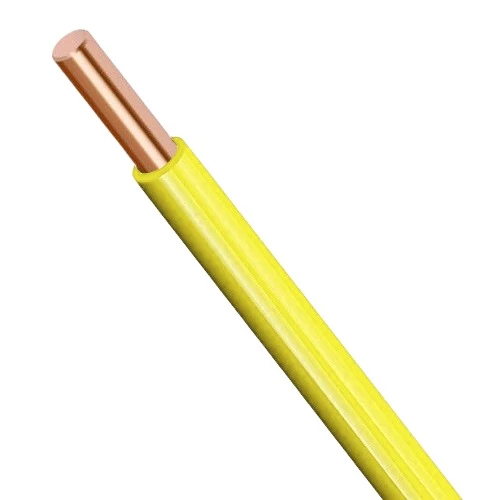

0.5 sq mm Single Core Electric Wire 600/1000 V, Solid Copper, Heat Resistant PVC Insulated (105°C), Yellow | Asharqiyah Cables

0.5 sq mm Single Core Electric Wire 600/1000 V, Solid Copper, Heat Resistant PVC Insulated (105°C), Yellow | Asharqiyah Cables

(467 Product Views)

YouMats

Solid copper wire, 0.5 sq mm, 600/1000 V, insulated with PVC providing high protection against electrical leakage, corrosion, and environmental factors such as moisture and harmful sunlight. This wire is used in lighting systems, control devices, and metering panels, and is resistant to shocks and abrasion, ensuring high performance in industrial environments. Yellow color produced by Asharqiyah Cables.

in stock
 Call Now

Product description

Solid copper electrical heat-resistant wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced in accordance with British Standard (BS 6231) to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Designed for use in wiring lighting fixtures, switches, control, metering, relay, and instrument panels of power switchgear, and for internal connections. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

  • Conductor: Solid Copper (Class 1)
  • Insulation Material: Heat Resistant PVC (105°C)
  • Voltage: 600/1000 volts
  • Conductor Size (Cross-Sectional Area): 0.50 mm²
  • Nominal Insulation Thickness: 0.80 mm
  • Approx Diameter: 2.40 mm
  • Weight: 10 kg/km
  • Maximum DC Resistance at 20°C: ≤36.0 ohm/km
  • Suggested Current Capacity: 4 A
  • Standard Length: 100 yards (91.4 meters)
  • Insulation Color: Yellow
  • Standards: BS 6231
