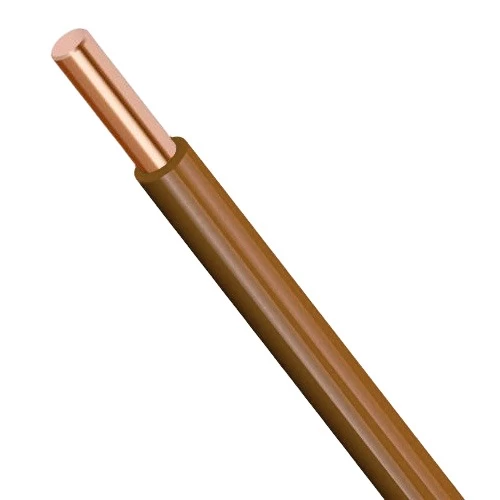

14 AWG Solid Copper American Electric Wire, 600 Voltage Rating, PVC Insulation (105°C), Brown, Length 2500ft | Alsharqiyah Cables
(819 Product Views)
Solid copper electrical AWM american wire, 14 AWG Cross Section, 600 Volts, specifically designed for internal wiring in household and industrial appliances, color is brown, manufactured by Alsharqiyah Cables Company.
Product description
Electrical american wire (AWM), manufactured by Alsharqiyah Cables Company. complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Solid Copper
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 14 AWG
- Wire Diameter: 1.63 mm
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.30 mm
- Approx Weight: 30 kg/km
- Insulation Color: Brown
- Standard Length: 2500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934
Additional Information▼
Product Specifications
American AWM Wire, 14 AWG from Eastern Cables, features the following specifications:
- Wire Type: American AWM Wire
- Conductor Material: Solid Copper
- Insulation Material: PVC 105°C Heat Resistant
- Voltage: 600 Volts
- Cross-Sectional Area: 14 AWG
- Wire Diameter: 1.63 mm
- Insulation Thickness: 0.76 mm
- Total Diameter: 3.30 mm
- Weight: 30 kg/km
- Insulation Color: Brown
- Standard Length: 2500 Feet
- Standards: UL-1015, UL 758, UL E505934
