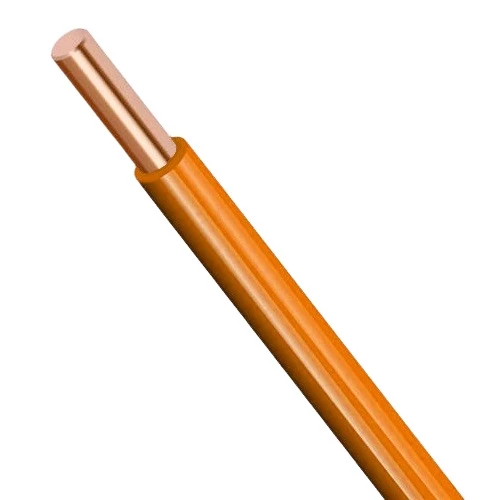

12 AWG Solid Copper American Wire, PVC Insulated (+105°C) Orange, 600 Rated Voltage | Asharqiyah Cables
(696 Product Views)
Solid copper electric american wire (AWM), Length 2500 feet, 12 AWG conductor size, manufactured by Asharqiyah Cables, Available in a variety of colors to suit a variety of needs, rated for 600 Vac or 750 Vdc.
Product description
Solid copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Solid Copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 12 AWG
- Wire Diameter : 2.05 mm
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 4.35 mm
- Approx Weight : 50 kg/km
- Insulation Color : Orange
- Standard Length : 2500 feet on a plastic spool or wooden drum
- Standards : UL STYLE 1028, UL 758, UL E505934
