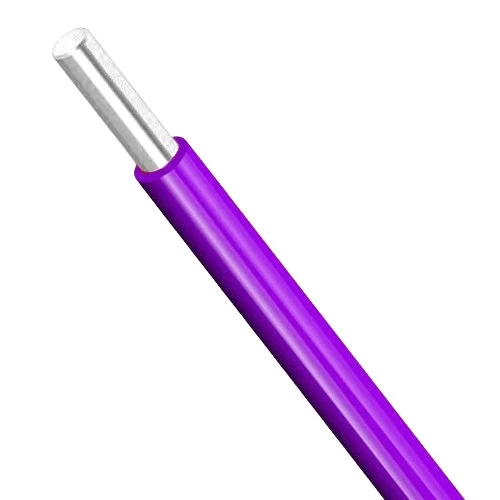

12 AWG Solid Tinned Copper American Electrical Wire, 600 V, PVC Insulation (+105°C) Violet | Asharqiyah Cables
(656 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Solid tinned copper electric american wire (AWM), manufactured by Asharqiyah Cables, 12 AWG conductor size, It is used in air conditioners, automatic washing machines, refrigeration equipment, control cabinets and other construction applications, 2500 ft Length.
Product description
Solid tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Solid tinned copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 12 AWG
- Wire Diameter : 2.05 mm
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 4.35 mm
- Approx Weight : 50 kg/km
- Insulation Color : Violet
- Standard Length : 2500 feet on a plastic spool or wooden drum
- Standards : UL STYLE 1028, UL 758, UL E505934
Additional Information▼
How many mm is 12 AWG? (Conversion to millimeters)
If you are looking for a direct answer: 12 AWG refers to the diameter of the conductor and not the cross-sectional area. In this product (solid copper wire coated with tin from Eastern Cables), the wire/conductor diameter = 2.05 mm according to the product data.
- 12 AWG = 2.05 mm (conductor diameter)
- Total diameter with insulation = 4.35 mm (important for passing through pipes/ducts)
- Insulation thickness = 1.14 mm (PVC +105°C heat resistant)
Important Note: The “total diameter” may vary from product to product due to the thickness and type of insulation, so when asking how many mm is 12 AWG, make sure whether you mean conductor diameter or diameter with insulation—here we provide both values accurately.
How to benefit from the millimeter size when purchasing and installing?
Knowing that the diameter of 12 AWG conductor = 2.05 mm helps you in:
- Ensuring compatibility of the connection within connectors and control cabinets and devices (especially with solid conductors).
- Selecting the installation path: Use the total diameter of 4.35 mm when calculating the fill of pipes or ducts.
- Matching site requirements: This wire is insulated PVC +105°C and rated for 600 volts, suitable for internal connections of devices such as air conditioners, washing machines, cooling equipment, and control cabinets.
Summary of 12 AWG AWM Wire Specifications (Eastern Cables)
- Brand: Eastern Cables
- Size: 12 AWG (conductor diameter 2.05 mm)
- Conductor Material: Solid copper coated with tin
- Insulation Type: PVC +105°C heat resistant
- Voltage: 600 volts
- Insulation Color: Purple
- Length: 2500 feet
