Solid Copper Electrical Wire, 2.5sq mm, 450/750V, PVC 70°C Insulation, Red Color, 50 meter | Saudi Cable Company
(426 Product Views)

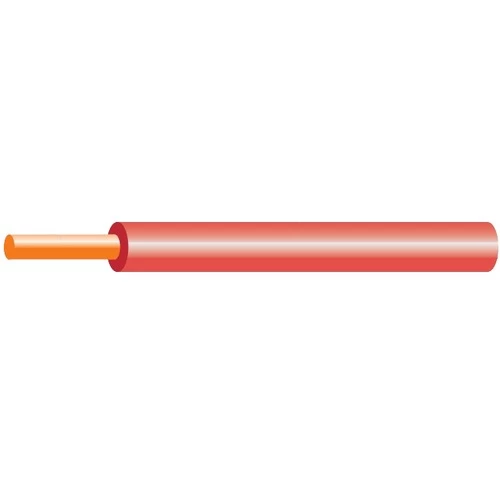

Solid copper electrical wire (CU/PVC), 2.5 mm2 size, 450/750V, length is 50 meter/Box, insulated with polyvinyl chloride (PVC 70°C), providing protection against abrasion, shocks also prevents moisture, manufactured by Saudi Cable Company (SCC).
Product description
Solid copper electrical wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Solid Copper Conforming to IEC:228
- Insulation Material: PVC Type 1 to BS:6746 Rated 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 2.5 mm
- Number of Wires in Conductor: 1
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 3.6 mm
- Weight: 30 kg/km
- Length: 50 meter/Box
- Color: Red
- specification: SASO:55
- Catalogue Number: ADA1-05*
