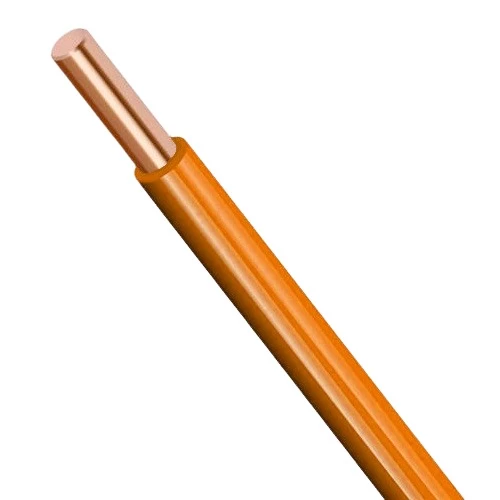

12 AWG Solid Copper American Electrical Wire, 600V, PVC Insulated (105°C), Orange, Length 2500 Feet | Alsharqiyah Cables
(751 Product Views)
Solid copper AWM electric wire 12 AWG, 600 voltage rating, PVC insulated, produced by Alsharqiyah Cables Company, used in internal wiring of electrical appliances, length 2500ft, insulation color is orange.
Product description
Electrical american wire (AWM), manufactured by Alsharqiyah Cables Company. complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Solid Copper
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 12 AWG
- Wire Diameter: 2.05 mm
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.60 mm
- Approx Weight: 45 kg/km
- Insulation Color: Orange
- Standard Length: 2500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934
