0.75mm 300/500V Electric Wire, 0.9mm Diameter Solid Copper Conductor, PVC Insulated | Alfanar

0.75mm 300/500V Electric Wire, 0.9mm Diameter Solid Copper Conductor, PVC Insulated | Alfanar

(587 Product Views)

YouMats

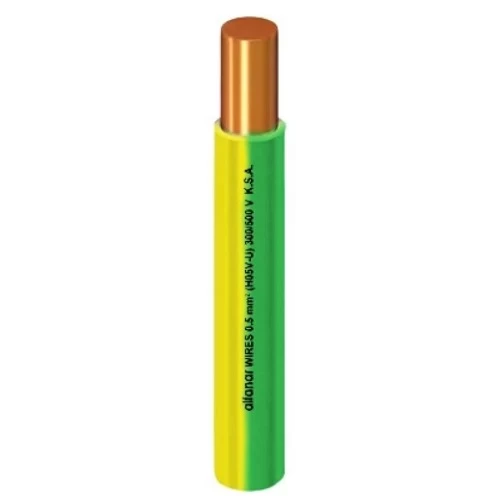

0.75mm 300/500V Electric Wire, 0.9mm Diameter Solid Copper Conductor, PVC Insulated. PVC insulation provides protection from moisture and corrosion and prevents shocks. Suitable for fixed internal installations. Yellow/Green color. Produced by Alfanar.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Solid copper electrical wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

  • Conductor Shape: Solid
  • Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
  • Voltage: 300/500 volts
  • Conductor Size (Cross-Sectional Area): 0.75 mm²
  • Conductor Diameter: 0.98 mm
  • Max DC Conductor Resistance at 20°C: 24.5 ohm/km
  • Nominal Insulation Thickness: 0.6 mm
  • Approx Overall Diameter: 2.2 mm
  • Weight: 12 kg/km
  • Length: 100 yards
  • Color: Yellow/Green
  • Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
