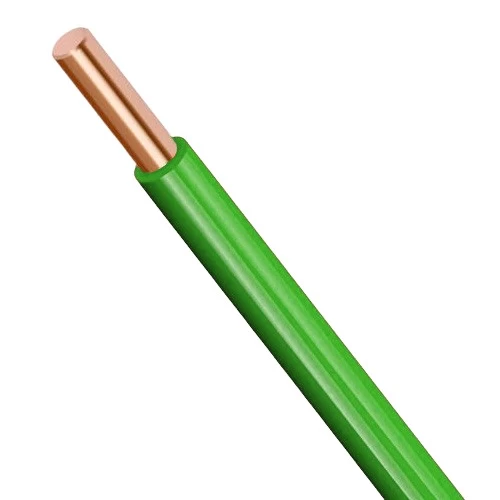

0.5 mm Single Core Electric Wire 600/1000 Voltage Rating, Solid Copper, Heat Resistant PVC Insulation (105°C), Green | Asharqiyah Cables
(2179 Product Views)
Solid copper wire, 0.5 mm, 600/1000 volts, insulated with PVC that withstands temperatures up to 105°C, offering excellent protection against shocks and corrosion. Ideal for indoor electrical systems like lighting and switching devices. With high resistance to water and moisture, it can be used in humid environments. Green color produced by Asharqiyah Cables.
in stock
🔗
Related Content
4mm 4 Core Stranded Copper Cable 60...
4 Core 16 mm Stranded Copper Cable...
25mm 4 Core Stranded Copper Cable 6...
0.5 mm Single Core Electric Wire 60...
1.0 mm Single Core Electric Wire 60...
0.5 mm Single Core Electric Wire 60...
0.75 sq mm Single Core Electrical W...
0.75 mm Single Core Electric wire 6...
Product description
- Conductor: Solid Copper (Class 1)
- Insulation Material: Heat Resistant PVC (105°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 0.50 mm²
- Nominal Insulation Thickness: 0.80 mm
- Approx Diameter: 2.40 mm
- Weight: 10 kg/km
- Maximum DC Resistance at 20°C: ≤36.0 ohm/km
- Suggested Current Capacity: 4 A
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Green
- Standards: BS 6231
