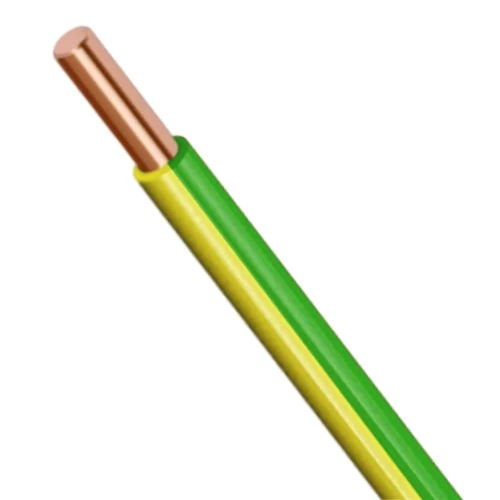

0.75 mm Single Core Electric wire 600/1000 Volts, Solid Copper, Heat Resistant PVC Insulation (105°C), Yellow/Green | Asharqiyah Cables

0.75 mm Single Core Electric wire 600/1000 Volts, Solid Copper, Heat Resistant PVC Insulation (105°C), Yellow/Green | Asharqiyah Cables

(517 Product Views)

YouMats

Solid copper wire, 0.75 mm, 600/1000 volts, insulated with PVC resistant to corrosion and other environmental factors such as water and moisture. This wire is highly durable and is primarily used in control systems and industrial connections that require protection from external impacts. The insulation also provides excellent protection against shocks, ensuring safe usage in harsh environments. Yellow/Green color produced by Asharqiyah Cables.

in stock
 Call Now

Product description

Solid copper electrical heat-resistant wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced in accordance with British Standard (BS 6231) to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Designed for use in wiring lighting fixtures, switches, control, metering, relay, and instrument panels of power switchgear, and for internal connections. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

  • Conductor: Solid Copper (Class 1)
  • Insulation Material: Heat Resistant PVC (105°C)
  • Voltage: 600/1000 volts
  • Conductor Size (Cross-Sectional Area): 0.75 mm²
  • Nominal Insulation Thickness: 0.80 mm
  • Approx Diameter: 2.60 mm
  • Weight: 15 kg/km
  • Maximum DC Resistance at 20°C: ≤24.50 ohm/km
  • Suggested Current Capacity: 7 A
  • Standard Length: 100 yards (91.4 meters)
  • Insulation Color: Green/Yellow
  • Standards: BS 6231
