TCU/PVC Flexible Copper American Wire 14 AWG Size, 1000V, Green Color, 2500 feet length | Asharqiyah Cables
(618 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

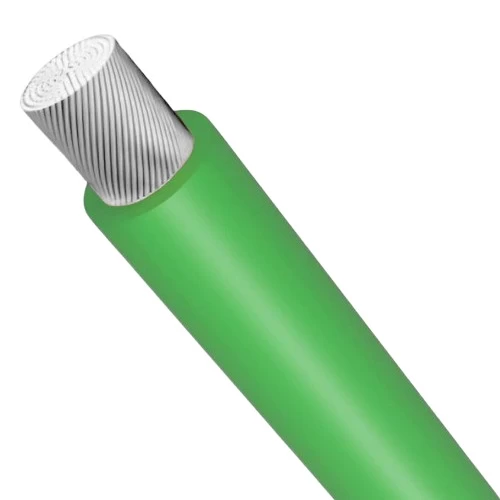

Flexible Tinned Copper electrical american wire (AWM), Cross-sectional area 14 AWG, insulated with high quality PVC (+105°C) and high heat resistance, ensuring reliable performance in various conditions, overall diameter 3.60mm, color green, designed to operate at rated voltage 1000V AC, standard length 2500 feet, manufactured by Asharqiyah Cables, characterized by high technical specifications.
Product description
Flexible Tinned Copper electrical american wire (AWM), manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Tinned Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 14 AWG
- No. of Wires: 41
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.60 mm
- Approx Weight: 35 kg/km
- Insulation Color: green
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
