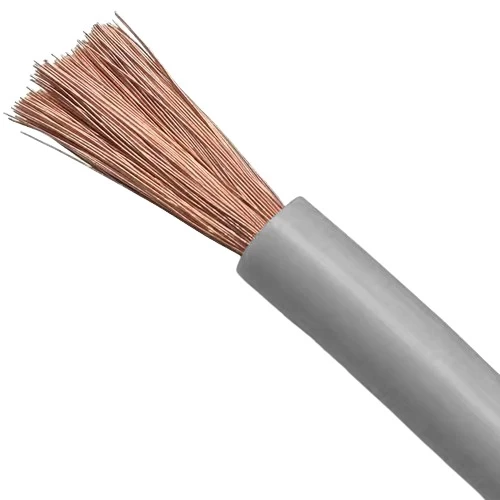

BAHRA 70mm Electric Wire 450/750 Voltage Rating, Flexible Copper Conductor, PVC 70°C Insulation, Gray, Coil Length 100 Yards
(594 Product Views)
Flexible electric wire 70 mm, 450/750 Volts, copper conductor PVC 70°C Insulated, this cable finds extensive use in internal connections of appliances and equipment, insulation color is gray, produced by Bahra Cables.
Product description
Electrical wire (CU/PVC), manufactured by Bahra Cables Company, according to British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Copper
- Insulation Material: PVC 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 70 mm
- Number of Wires x Nominal Wire Diameter: 337 X 0.5 mm
- Maximum DC Resistance at 20°C: 0.272 ohm/km
- Nominal Insulation Thickness: 1.4 mm
- Approx Overall Diameter: 14 mm
- Current Carrying Capacity (PVC 70°C): 192 Ampere
- Standard Length: 100 Yards/Coil
- Insulation Color: Gray
- Standards: 60227 IEC 02 & BS EN 50525 -2-31 AND SASO 1320
