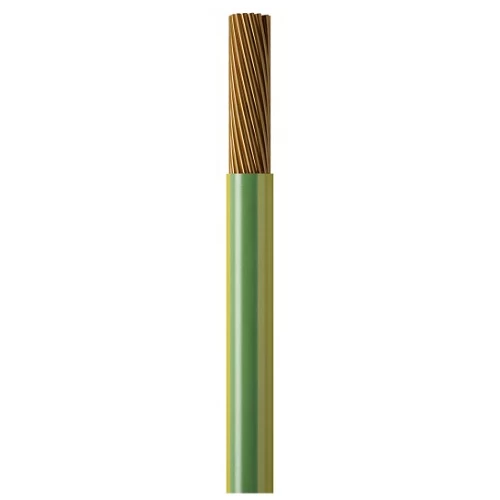

Flexible Copper Electric Wire, 6mm2 Cross Section 450/750 Rated Voltage, Green/Yellow | Jeddah Cables

Flexible Copper Electric Wire, 6mm2 Cross Section 450/750 Rated Voltage, Green/Yellow | Jeddah Cables

(855 Product Views)

YouMats

Flexible Copper Electric Wire, 6mm2 Cross Section 450/750 Rated Voltage, insulated with PVC providing protection from electric shocks and various environmental factors. Used to discharge excess electrical charges and protect people and devices. Green/Yellow color. Produced by Jeddah Cables.

in stock
 Call Now

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic known for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Used to provide a safe path for electric current in the event of a short circuit, by discharging any excess electrical charges to the ground. This protects people and equipment from electric shocks caused by electrical interference. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.


  • Conductor: Flexible Copper
  • Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 6 mm²
  • Nominal Insulation Thickness: 0.8 mm
  • Approx Overall Diameter: 5.2 mm
  • Weight: 70 kg/km
  • Max DC Conductor Resistance at 20°C: 3.30 ohm/km
  • Current Rating Laid in Conduits: 43 Ampere
  • Current Rating Laid in Free Air: 66 Ampere
  • Color: Green/Yellow
  • Standard: IEC 60227
