Flexible Copper Electric Wire, 35mm2 Cross Section 450/750V, Green/Yellow | Jeddah Cables

Flexible Copper Electric Wire, 35mm2 Cross Section 450/750V, Green/Yellow | Jeddah Cables

(515 Product Views)

YouMats

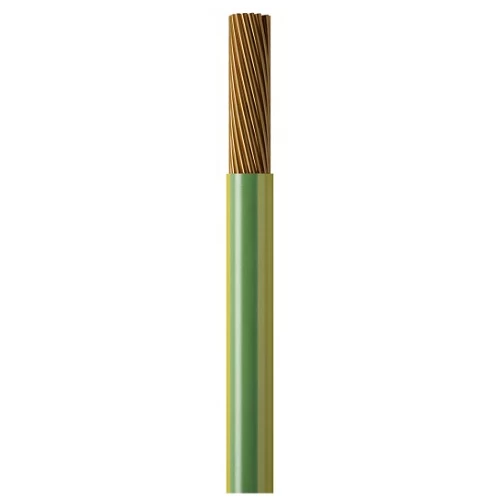

Flexible Copper Electric Wire, 35mm2 Cross Section 450/750V, insulated with PVC for protection against corrosion and various environmental factors. Used in high electrical load connections to ensure electrical safety. Green/Yellow color. Produced by Jeddah Cables.

in stock
 Call Now

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic known for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Used to provide a safe path for electric current in the event of a short circuit, by discharging any excess electrical charges to the ground. This protects people and equipment from electric shocks caused by electrical interference. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.


  • Conductor: Flexible Copper
  • Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 35 mm²
  • Nominal Insulation Thickness: 1.2 mm
  • Approx Overall Diameter: 10.9 mm
  • Weight: 365 kg/km
  • Max DC Conductor Resistance at 20°C: 0.554 ohm/km
  • Current Rating Laid in Conduits: 126 Ampere
  • Current Rating Laid in Free Air: 189 Ampere
  • Color: Green/Yellow
  • Standard: IEC 60227
