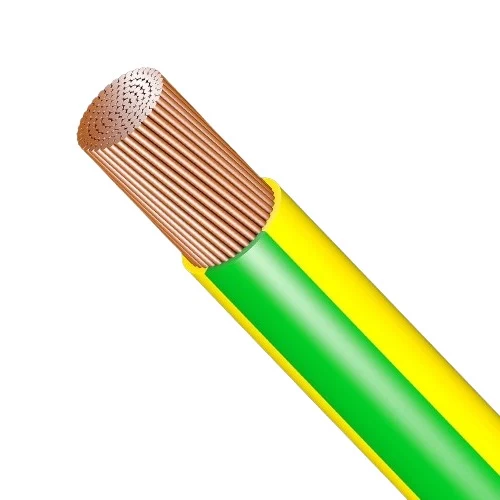

Flexible Copper Earthing Electrical Wire 240mm2 450/750 Rated Voltage, PVC Insulation, Yellow/Green | Riyadh Cables
(699 Product Views)
Flexible copper earthing electrical wire, 240mm2 size, 450/750 rated voltage, PVC insulation, known for its high capacity to handle large electrical loads while providing effective protection against electrical leakage. Ideal for use in heavy-duty industrial applications. Yellow/Green color. Produced by Riyadh Cables.
in stock
🔗
Related Content
PVC Coated Flexible Conduit, Size 4...
Liquid Tight Flexible Conduit, Size...
Riyadh 6 AWG THHN Stranded Copper A...
4mm 450/750 Volt Solid Copper Wire,...
12x1.5mm 0.6/1kV Stranded Copper Co...
Flexible Copper Earthing Electrical...
Flexible Copper Earthing Electrical...
Flexible Copper Earthing Electrical...
Product description
- Conductor: Flexible Copper
- Wire Type: (H07V-K)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 240 mm²
- Number of Wires in Conductor: 1140
- Wire Diameter: 0.50 mm
- Conductor Diameter: 24.0 mm
- Nominal Insulation Thickness: 2.2 mm
- Overall Diameter: 28.4 mm
- Weight: 2500 kg/km
- Maximum DC Resistance at 20°C: 0.0801 ohm/km
- Length: 1000m drum (±5%)
- Color: Yellow/Green
- Standards: SSA 1320, IEC 60227 & BS 6004
