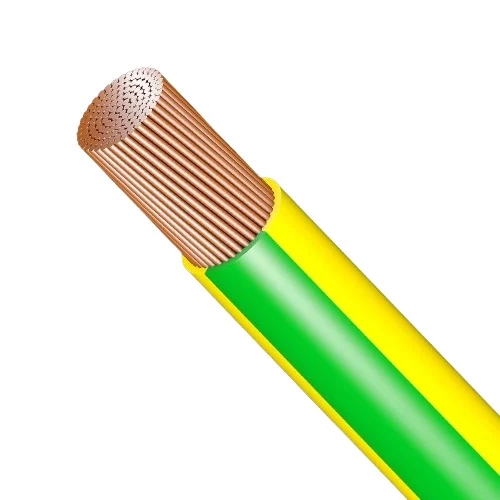

Flexible Copper Earthing Electrical Wire 150mm2 450/750 Voltage Rating, PVC Insulation, Yellow/Green | Riyadh Cables

Flexible Copper Earthing Electrical Wire 150mm2 450/750 Voltage Rating, PVC Insulation, Yellow/Green | Riyadh Cables

(496 Product Views)

YouMats

Flexible copper earthing electrical wire, 150mm2 size, 450/750 voltage rating, PVC insulation, providing high durability and reliable protection against electrical leakage. Ideal for use in industrial environments with heavy loads. Yellow/Green color. Produced by Riyadh Cables.

in stock
 Call Now

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment. Available in various shapes, colors, and sizes with the highest quality and best prices to suit different applications and needs.

  • Conductor: Flexible Copper
  • Wire Type: (H07V-K)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 150 mm²
  • Number of Wires in Conductor: 744
  • Wire Diameter: 0.50 mm
  • Conductor Diameter: 19.0 mm
  • Nominal Insulation Thickness: 1.8 mm
  • Overall Diameter: 22.0 mm
  • Weight: 1600 kg/km
  • Maximum DC Resistance at 20°C: 0.129 ohm/km
  • Length: 1000m drum (±5%)
  • Color: Yellow/Green
  • Standards: SSA 1320, IEC 60227 & BS 6004
