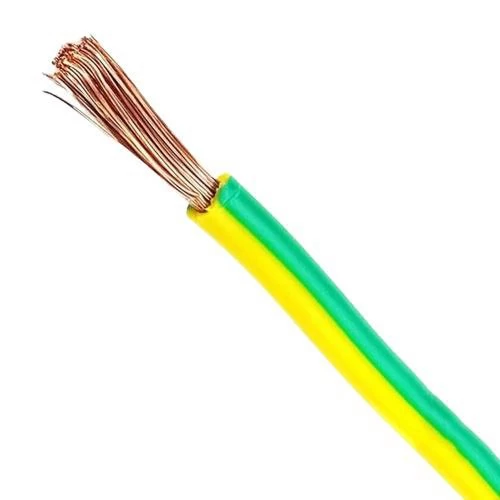

Flexible Copper Earth Electrical Wire CU/PVC, 120mm2 Size, 450/750V, Green/Yellow | Nohascom Factory
(556 Product Views)
Flexible copper earth electrical wire CU/PVC, 120 mm2 size, 450/750V, green/yellow color, PVC (polyvinyl chloride) insulation is distinguished by its good insulating properties and its resistance to water and moisture, manufactured by Nohascom Factory International Co.
Product description
Flexible copper electrical wire for earthing (CU/PVC), manufactured by Nohascom Factory International Co. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. The grounding wire is used to provide a safe path for electric current to flow to the ground in the event of a short circuit, thus protecting people and equipment from electric shocks and fires. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of Wires : 628
- Conductor Diameter: 0.5 mm
- Max DC Conductor Resistance at 20°C: 0.161 ohm/km
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 17.6 mm
- Weight: 1210 kg/km
- Length: 100 yards (91.44 meters) on coil (Custom lengths are available upon request)
- Color: Green/Yellow
- Standard: IEC 60227
