10mm Flexible Tinned Copper Electrical Wire 600/1000 Voltage Rating, Heat Resistant PVC Insulated (105°C), Orange | Alsharqiyah Cables
(880 Product Views)

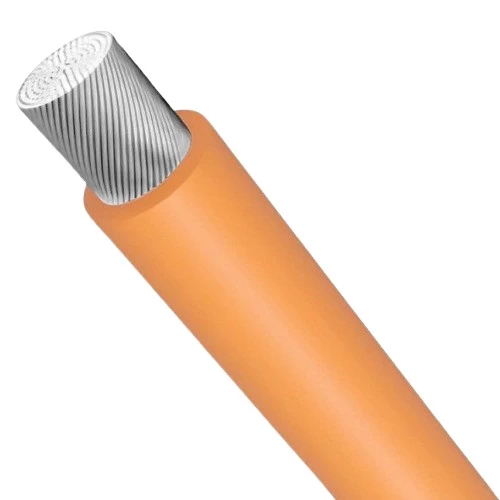

Flexible electric wire 10 mm, 600/1000 Volts, tinned copper conductor PVC 105°C Insulated, this cable finds extensive use in internal connections in rectifier equipment and its motor starters/controllers, insulation color is orange, produced by Alsharqiyah Cables.
Product description
Electrical wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Tinned Copper (Class 5)
- Insulation Material: Heat Resistant PVC (105°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 10 mm
- Nominal Insulation Thickness: 1 mm
- Approx Diameter: 6.20 mm
- Weight: 119 kg/km
- Maximum DC Resistance at 20°C: ≤1.91 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Orange
- Reference Standards: BS 6231, BS EN 60228, BS EN 50363
