CU/PVC Flexible Copper American Electric Wire 16 AWG, 1000Vac, Red Color, 2500ft Length | Asharqiyah Cables
(490 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

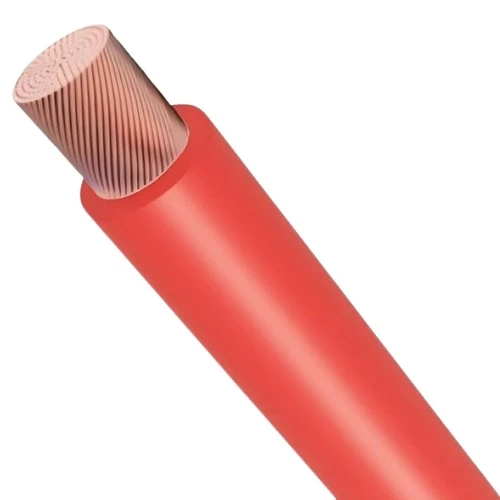

Single core flexible copper electrical american wire (AWM), Sectional area 16 AWG, color red, insulated with (PVC +105°C), designed to work with a rated voltage of 1000 volts AC, length 2500 fts, overall diameter 3.08 mm, insulation thickness 0.76 mm, manufactured by Asharqiyah Cables, the optimal solution for connecting household appliances such as air conditioners and washing machines, as well as industrial applications like refrigeration equipment and control panels.
Product description
Single core flexible copper electrical american wire (AWM), manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 16 AWG
- No. of Wires: 26
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.08 mm
- Approx Weight: 26 kg/km
- Insulation Color: red
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
