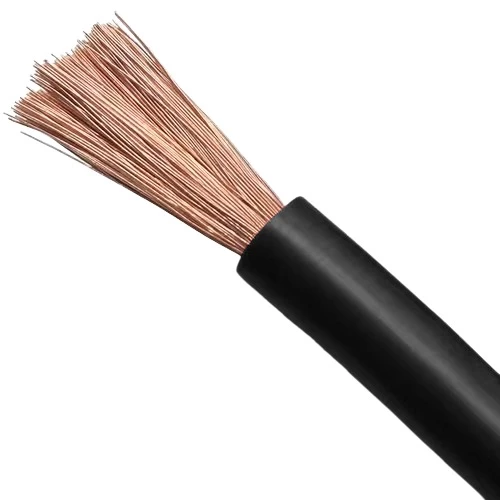

BAHRA 10mm Electrical Wire 450/750V, Flexible Copper PVC 90°C Insulated, black Color, 100 Yards
(694 Product Views)
Flexible copper electrical wire (CU/PVC), 10 mm2 cross section, 450/750 volts, manufactured by Bahra Cables Company, Insulated (PVC 90°C), this insulation forms an excellent protective layer around the conductor to prevent electric current leakage, black color
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Bahra Cables Company according to British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-K
- Conductor: Flexible Copper
- Insulation Material: PVC 90°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires x Nominal Wire Diameter:77 X 0.4 mm
- Maximum DC Resistance at 20°C: 1.91 ohm/km
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 6.15 mm
- Current Carrying Capacity (PVC 90°C): 68 Ampere
- Standard Length: 100 Yards/Coil
- Insulation Color: black
- Standards: 60227 IEC 02 & BS EN 50525 -2-31 AND SASO 1320
