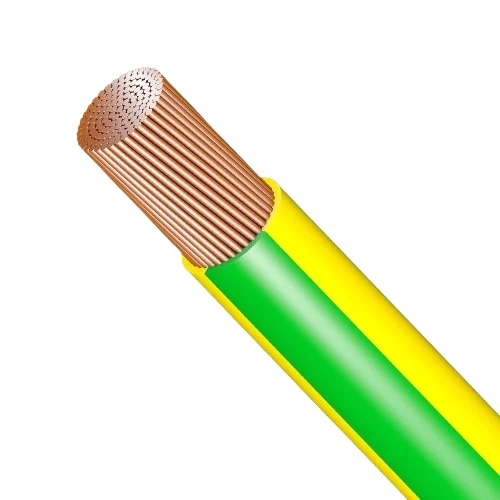

Flexible Copper Earth Electric Wire 0.75mm 300/500 Volts, PVC Insulated, Green/Yellow | Riyadh Cables
(813 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Flexible copper electrical wire, 0.75mm 300/500V, PVC insulated, color is green/yellow. This protects people and equipment from electric shocks caused by electrical interference, produced by Riyadh Cables Company.
Product description
Electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the wire and it is also highly resistant to water and moisture. Used to provide a safe path for electric current in the event of a short circuit, by discharging any excess electrical charges to the ground. This protects people and equipment from electric shocks caused by electrical interference. Available in various shapes, colors and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Wire Type: (H05V-K)
- Voltage: 300/500 volts
- Conductor Size (Cross-Sectional Area): 0.75 mm
- Wire Diameter: 0.20 mm
- Nominal Insulation Thickness: 0.6 mm
- Overall Diameter: 2.6 mm
- Maximum DC Resistance at 20°C: 26 ohm/km
- Weight: 12 kg/km
- Color: Green/Yellow
- Standards: BS 6004, IEC 60227
