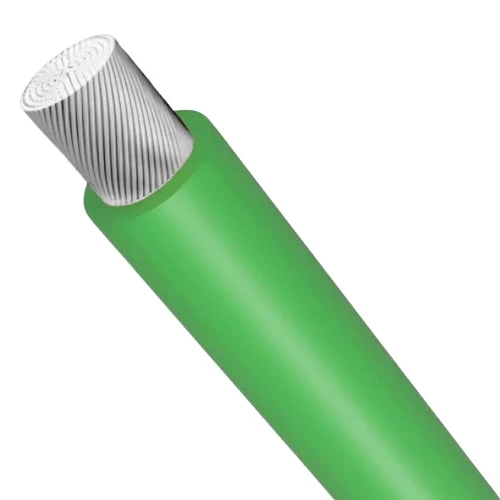

35mm Flexible Tinned Copper Electric Wire 600/1000 Rated Voltage, Heat Resistant PVC Insulation (105°C), Green | Alsharqiyah Cables
(453 Product Views)
Flexible tinned copper electrical wire (CU/PVC), 35 mm2 cross section, 600/1000 Volts, manufactured by Alsharqiyah Cables Company, this cable finds extensive use in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, color is green.
Product description
Electrical wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Tinned Copper (Class 5)
- Insulation Material: Heat Resistant PVC (105°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 35 mm
- Nominal Insulation Thickness: 1.20 mm
- Approx Diameter: 10.30 mm
- Weight: 370 kg/km
- Maximum DC Resistance at 20°C: ≤0.554 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Green
- Reference Standards: BS 6231, BS EN 60228, BS EN 50363
