16mm Flexible Copper Wire 450/750 Voltage Rating, PVC Insulation, Black Color | Nohascom Factory
(717 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

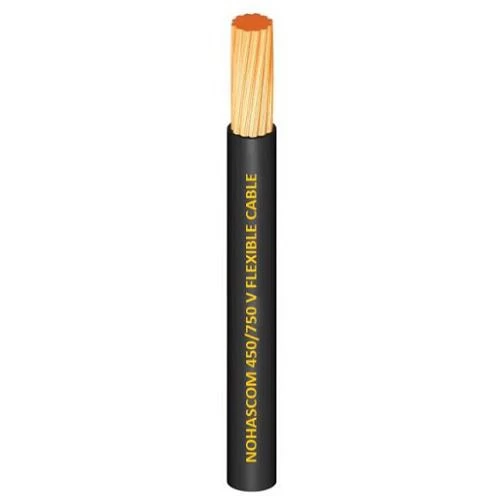

Flexible copper electrical wire (CU/PVC), manufactured by Nohascom Factory International Co, 16 mm2 cross-sectional area, 450/750 volts, insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties, phase core color black, it is considered a cost-effective option compared to other insulation types.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Nohascom Factory International Co. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of Wires : 126
- Conductor Diameter: 0.40 mm
- Max DC Conductor Resistance at 20°C: 1.21 ohm/km
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 7.6 mm
- Weight: 178 kg/km
- Length: Available in standard length (lengths available on customized request)
- Color: Black
