12 AWG Coil Electrical Wire Flexible Copper, PVC Insulation (+105°C) red, 600 V | Asharqiyah Cables
(846 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

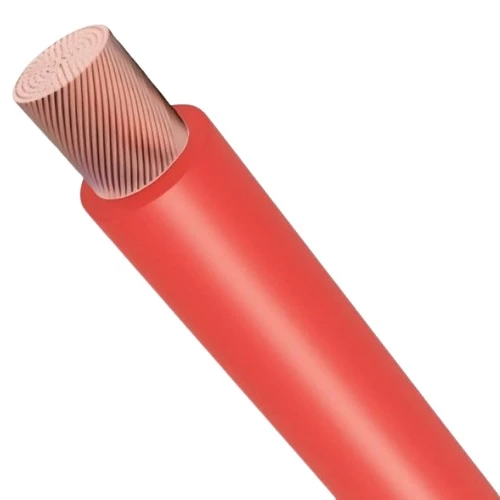

Flexible copper electrical american wire (AWM), size 12 (AWG), Length 2500 feet, red color, thickness of the insulating material is 1.14, Number of wires 65 ,made of insulating material with superior PVC insulation rated at 105°C and 600V, manufactured by Asharqiyah Cables Company. Its excellent heat and moisture resistance, ensures optimal performance in various conditions.
Product description
Flexible copper electrical american wire (AWM), manufactured by Asharqiyah Cables. complying with (UL STYLE 1028) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 12 AWG
- No. of Wires: 65
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 1.14 mm
- Approx Overall Diameter: 4.80 mm
- Approx Weight: 54 kg/km
- Insulation Color: red
- Standard Length: 2500 feet
- Standards: UL STYLE 1028, UL 758, UL E505934
Additional Information▼
How many mm is 12 AWG wire? (Conversion from AWG to mm)
When asking how many mm is 12 AWG wire, it often refers to the conductor diameter or cross-sectional area of the wire. The AWG scale is an American standard, and the conversion to millimeters is as follows:
- 12 AWG ≈ 3.31 mm² (approximate cross-sectional area of the conductor).
- Approximate conductor diameter ≈ 2.05 mm (without insulation).
Important: The outer diameter after insulation varies depending on the thickness and type of insulation. According to the specifications of this product from Eastern Cables: Insulation thickness 1.14 mm and approximate total diameter 4.80 mm (with insulation).
12 AWG Sizes in this Product (Confirmed Data)
To ensure accuracy when purchasing or matching specifications in the project, here are the key figures for the 12 AWG AWM wire available from us:
- Brand: Eastern Cables
- Conductor: Stranded Copper (Number of strands: 65)
- Insulation type: PVC +105°C
- Rated voltage: 600 Volts
- Insulation layer thickness: 1.14 mm
- Approximate total diameter (with insulation): 4.80 mm
- Color: Red
- Standard roll length: 2500 feet
Quick Tip Before Purchase (Based on Your Use)
If your goal in knowing how many mm is 12 AWG wire is to ensure the wire is suitable for pipes/ducts or connections within devices: rely on the total diameter of 4.80 mm when calculating the space inside pipes or arranging wires, and use 12 AWG and 600 Volts when matching technical requirements for connections.
