12 AWG Coil Electrical Wire Flexible Copper, PVC Insulation (+105°C) violet, 600 V | Asharqiyah Cables
(810 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

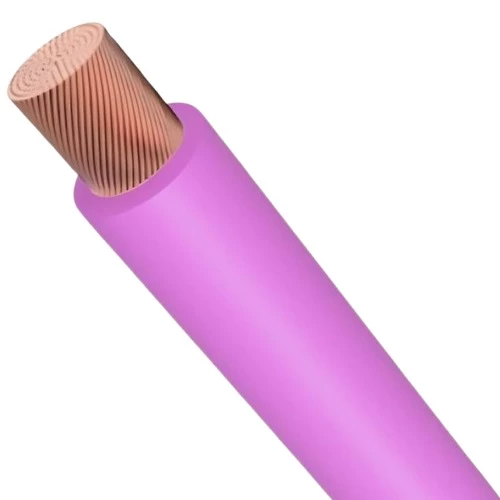

Flexible copper electrical american wire (AWM), size 12 (AWG), Length 2500 feet, Purple insulator, thickness of the insulating material is 1.14 mm, Number of wires 65 ,made of insulating material with superior PVC insulation rated at 105°C and 600V, manufactured by Asharqiyah Cables Company. Its excellent heat and moisture resistance, ensures optimal performance in various conditions.
Product description
Flexible copper electrical american wire (AWM), manufactured by Asharqiyah Cables. complying with (UL STYLE 1028) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 12 AWG
- No. of Wires: 65
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 1.14 mm
- Approx Overall Diameter: 4.80 mm
- Approx Weight: 54 kg/km
- Insulation Color: violet
- Standard Length: 2500 feet
- Standards: UL STYLE 1028, UL 758, UL E505934
Additional Information▼
How many mm is 12 AWG? (conversion to mm²)
The size 12 AWG is an American standard for measuring wire thickness. When converted to the metric system, 12 AWG is approximately 3.31 mm² (cross-sectional area of the conductor). This number indicates "how many mm" in terms of cross-sectional area, not the outer diameter of the wire.
Does "how many mm" refer to diameter or cross-sectional area?
In common usage, "how many mm" may refer to one of two things:
- Cross-sectional area (mm²): This is the most accurate when comparing loads and connections. For size 12 AWG ≈ 3.31 mm².
- Outer diameter with insulation: This varies depending on the type and thickness of insulation. In this product, the insulation thickness is 1.14 mm and the approximate total diameter is 4.80 mm.
Quick summary of 12 AWG wire specifications (the displayed product)
- Brand: Eastern Cables
- Size: 12 AWG (≈ 3.31 mm²)
- Rated voltage: 600 volts
- Conductor: Copper (number of strands: 65)
- Insulation type: PVC (+105°C) — Insulation thickness: 1.14 mm
- Insulation color: Purple
- Length: 2500 feet
Important note: When selecting wire for projects within Saudi Arabia, ensure that the size (AWG) matches the required cross-sectional area (mm²) and is suitable for the installation environment, temperature, and type of device.
