10sq mm Single Core Wire 600/1000V, Flexible Tinned Copper, PVC Insulation (70°C), Red | Asharqiyah Cables
(1062 Product Views)

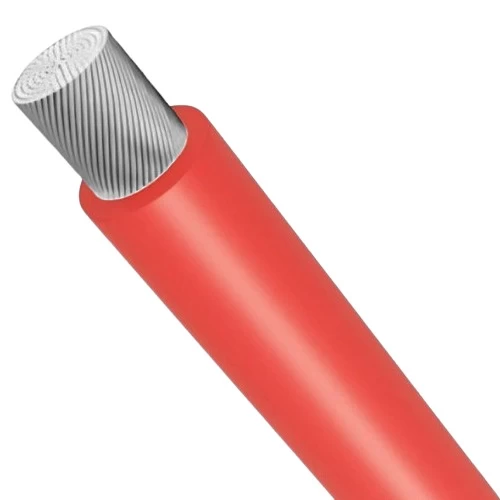

Flexible tinned copper electrical wire (CU/PVC), 10 mm2 cross section, 600/1000 volts, red color, it is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, manufactured by Asharqiyah Cables Company.
Product description
Flexible tinned copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Tinned Copper (Class 5)
- Insulation Material: PVC (70°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 10 mm2
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 6.20 mm
- Weight: 119 kg/km
- Maximum DC Resistance at 20°C: ≤1.91 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Red
- Reference Standards: BS 6231, BS EN 60228, BS EN 50363
