Flexible Copper NYA Electrical Wire, 240mm Size, 1000V, PVC 90°C Insulated, Gray, 100 Yards | RESCAB
(647 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

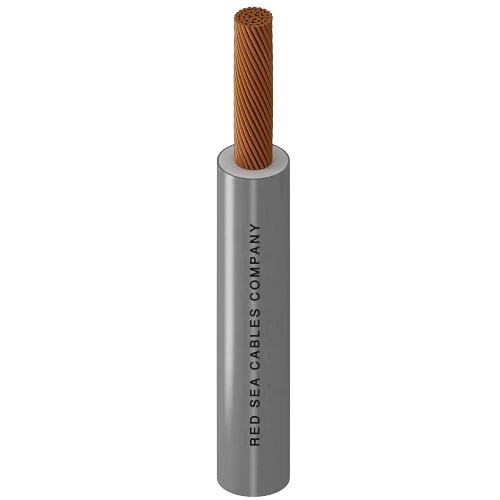

Flexible copper electrical wire (CU/PVC), 240 mm2 cross section, suitable for voltages up to 1000Vac or up to 750Vdc to earth, manufactured by Red Sea Cables, Grey colour, manufactured to the highest international and British standards, prevents electrical short circuits or electric shocks thanks to excellent insulation.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Red Sea Cables Company according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-K
- Conductor: Flexible Copper
- Insulation Material: PVC 90°C
- Voltage: up to 1000Vac or upto 750Vdc
- Conductor Size (Cross-Sectional Area): 240 mm2
- No x Diameter of Wires: 1134 x 0.5mm
- Nominal Insulation Thickness: 2.2 mm
- Approx Overall Diameter: 25.9 mm
- Maximum DC Resistance at 20°C: 0.0801 ohm/km
- Current Carrying Capacity (PVC 90°C): 424 Ampere
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Insulation Color: Gray
- Reference Standards: IEC 60227, SASO 1320, BS 6004
