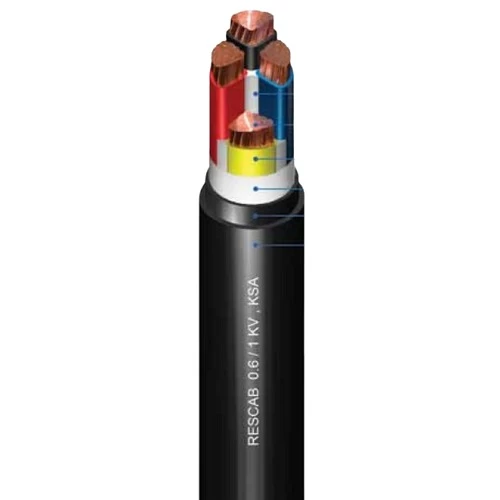

CU/PVC/PVC Stranded Copper Power Cable, Four Core, 95mm, 0.6/1kV, 500 meter | Red Sea Cables
(608 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded Copper Electric Cable (CU/PVC/PVC), 95 sq mm, 4 Core, 0.6/1 kV, manufactured by RESCAB. Features high-quality PVC insulation that protects against electrical leakage and corrosion, making it suitable for all electrical applications.
Product description
Stranded copper power cable (CU/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 95 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 42 mm
- Max DC Conductor Resistance at 20°C: 0.193 ohm/km
- Weight: 4550 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
