CU/PVC/PVC Stranded Copper Cable, Four Core, 120mm, 0.6/1kV, 500 meter | Red Sea Cables
(559 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

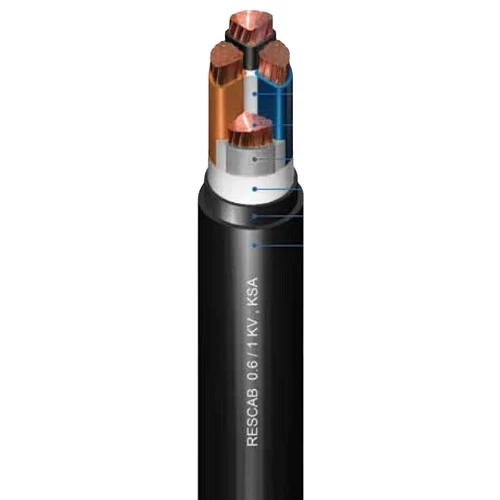

Stranded Copper Power Cable (CU/PVC/PVC), 120 sq mm, 4 Core, Low Voltage 0.6/1 kV, manufactured by RESCAB. offers high flexibility and excellent insulation to prevent electrical leakage, making it suitable for various applications.
Product description
Stranded copper power cable (CU/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 46 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Weight: 5600 kg/km
- Standard Length: 500 meters
- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
