4 Core 16mm Electric Cable 300/500V, Stranded Copper Conductor, PVC 85°C Insulation, Gray Color, 1000 M/Drum | SCC
(615 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

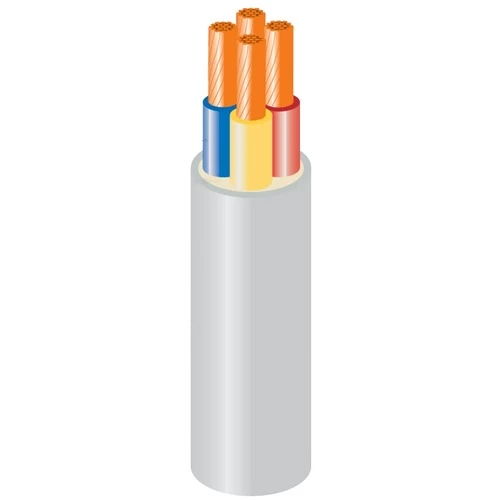

Stranded copper 4 core electric cable (CU/PVC/PVC), 16 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 1000 meters. Excellent resistance to heat and moisture. Manufactured by Saudi Cable Company.
Product description
Stranded copper electrical cable (CU/PVC/PVC). Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications, fixed wiring, concealed in conduits or exposed on insulators, and in switching panels and distribution boards. These cables may be used in wet or dry locations and in outdoor applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 16mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 21.5 mm
- Weight: 944 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH4-09H
Additional Information▼
When to Choose a 16mm 4-Core Cable?
This 16mm 4-Core Cable (Stranded Copper CU/PVC/PVC) is suitable for fixed installations in buildings and facilities within Saudi Arabia when you need 4 conductors with PVC insulation rated for 85°C, and a voltage of 300/500 volts. It is commonly used in installations within conduits or on insulators, in distribution boards and control panels, and can be installed in dry or wet locations as well as in outdoor applications depending on site requirements.
Specifications Summary (Quick and Clear)
- Manufacturer: Saudi Cables Company (SCC)
- Type: Stranded Copper PVC Round Cable 4 Cores (CU/PVC/PVC)
- Size: 16 mm²
- Number of Cores: 4
- Voltage: 300/500 volts (Low Voltage)
- Insulation: PVC 85°C
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Gray
- Length: 1000 meters
- Approximate Weight: 944 kg/km
- SKU: CGH4-09H
Important Purchasing Guidelines Before Ordering
- Ensure Size and Number of Cores: Choose 16mm 4-Core Cable only if the circuit design requires 4 conductors with a cross-sectional area of 16 mm².
- Check Voltage and Type of Insulation: This product is rated for 300/500 volts with PVC insulation up to 85°C, making it suitable for common low voltage installations.
- Review Installation Environment: The gray PVC sheath is suitable for normal conditions, with the possibility of use in wet or outdoor locations according to project specifications and protection methods.
- Select the Appropriate Length: The product comes in a 1000-meter roll—calculate your project's needs to minimize waste in cutting and installation.
Installation and Storage Tips (Concise)
- It is recommended to carry out the installation by a qualified electrician, adhering to the safety standards approved in Saudi Arabia.
- Avoid bending the cable sharply or pulling it forcefully during installation within conduits to prevent stress on the insulation.
- Store the roll in a dry place away from direct heat sources to maintain the quality of the PVC insulation.
