4.5 Core 4x35+16sq mm 0.6/1kV Stranded Cable, CU/PVC/PVC, 1000 meter Length | BAHRA
(932 Product Views)

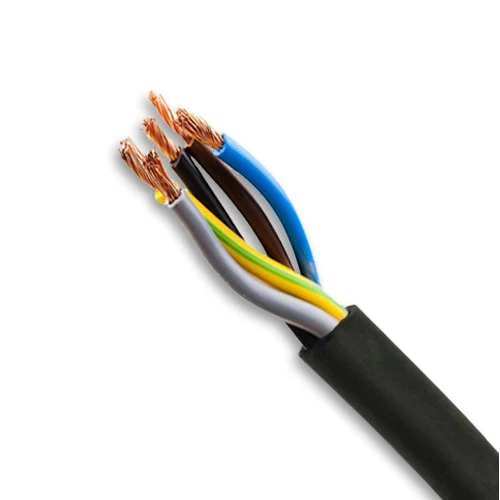

Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4x35+16mm2 size conductor, Low Voltage 0.6/1kV, The cable is easy to repair thanks to its innovative design, and easy to transport and install thanks to its light weight. Color (Blue, Brown, Black Grey, Green/Yellow), manufactured by Bahra Cables Company.
Product description
Unarmored Stranded copper power cable (CU/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx35 mm2 ) + 16mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.2 mm
- Nominal Insulation Thickness of Neutral: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 24.3 mm
- Weight: 1491 kg/km
- Length : 1000 meters
- Phase Core Colors: (Blue, Brown, Black Grey, Green/Yellow)
- Standard: BS 5467
