Two Core Stranded Copper Cable, 16mm Size, 300/500 Rated Voltage, PVC Insulation and Sheath | Riyadh Cables
(973 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

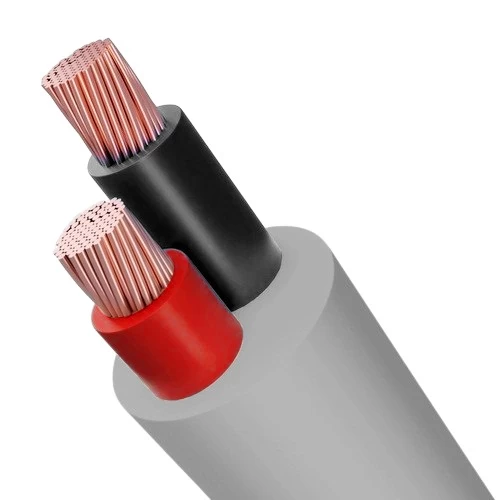

2 core stranded copper cable, 16mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is red and black, available in a variety of sizes and colors with highest quality and best prices, produced by Riyadh Cables Company.
Product description
Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 16 mm
- Number of Wires: 7
- Approx Conductor Diameter: 5.10 mm
- Insulation Thickness: 1
- Sheath Thickness: 1.4 mm
- Overall Diameter: 20 mm
- Weight: 650 kg/km
- Max DC Conductor Resistance at 20°C: 1.15 ohm/km
- Standard Packing Length: 1000/2000 meter
- Insulation Color: (Red, Black)
- Outer Sheath Color: Gray
- Standards: IEC 60502, SSA 1450
Additional Information▼
Installation and Usage Guidelines for 16mm Electric Cable
When installing a 16mm electric cable, it is advisable to follow the guidelines below to ensure optimal performance and safety:
- Always install the cable in locations away from high heat sources that may affect the quality of the insulating plastic.
- The cable should be handled carefully during installation to avoid unnatural stretching, as this may impact electrical performance.
- Select a safe location for securing the cable where it is protected from harsh environmental conditions.
