Two Core Stranded Copper Electric Cable, 4mm2 Size, 300/500 Rated Voltage, PVC Insulation, PVC Sheath | Riyadh Cables
(918 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

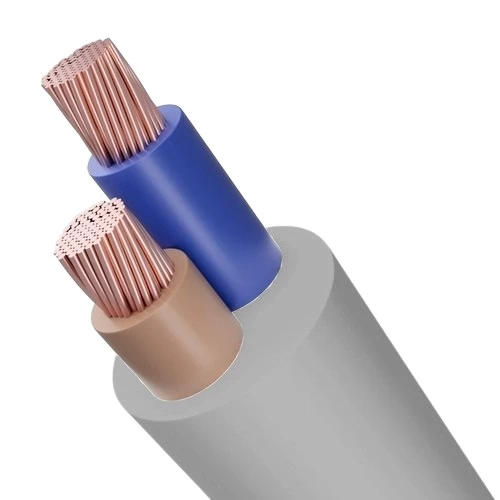

2 core stranded electrical copper cable (CU/PVC/PVC), 4 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is brown and light blue, produced by Riyadh Cables Company.
Product description
Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 4 mm
- Number of Wires: 7
- Approx Conductor Diameter: 2.55 mm
- Insulation Thickness: 0.8
- Sheath Thickness: 1.2 mm
- Overall Diameter: 13 mm
- Weight: 220 kg/km
- Max DC Conductor Resistance at 20°C: 4.61 ohm/km
- Standard Packing Length: 100 meter coil
- Insulation Color: (Brown, Light Blue)
- Outer Sheath Color: Gray
- Standards: IEC 60502, SSA 1450
