2 Core Stranded Copper Electrical Cable, 35mm2 Size Conductor, 300/500 Voltage Rating, PVC Insulation, PVC Sheath | Riyadh Cables
(991 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

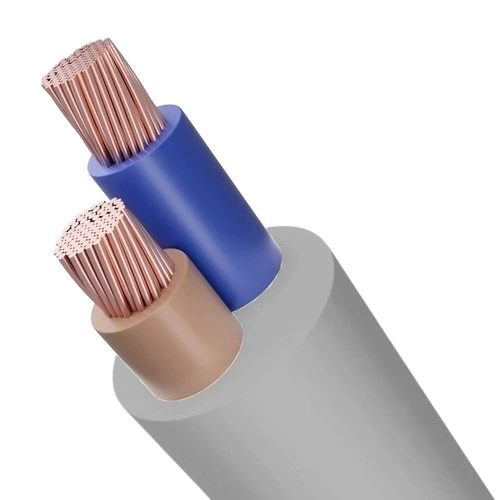

2 core stranded copper cable, 35mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is brown and light blue, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors, produced by Riyadh Cables Company.
Product description
Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 35 mm2
- Number of Wires: 7
- Approx Conductor Diameter: 7.65 mm
- Insulation Thickness: 1.2
- Sheath Thickness: 1.6 mm
- Overall Diameter: 27.5 mm
- Weight: 1300 kg/km
- Max DC Conductor Resistance at 20°C: 0.524 ohm/km
- Standard Packing Length: 1000 meter
- Insulation Color: (Brown, Light Blue)
- Outer Sheath Color: Gray
- Standards: IEC 60502, SSA 1450
