2 Core Stranded Copper Electrical Cable, 6 sq mm Size, 300/500 Voltage Rating, PVC Insulation, PVC Sheathed | Riyadh Cables
(1386 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

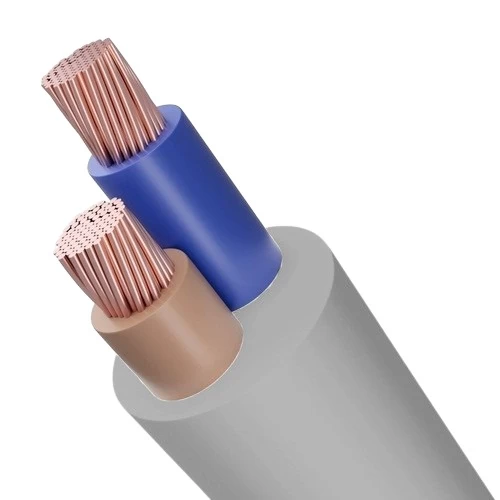

2 core stranded copper cable, 6mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is brown and light blue, produced by Riyadh Cables Company, where the outer jacket provides protection for the cable from corrosion and external factors.
Product description
Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 6 mm
- Number of Wires: 7
- Approx Conductor Diameter: 3.12 mm
- Insulation Thickness: 0.8
- Sheath Thickness: 1.2 mm
- Overall Diameter: 14 mm
- Weight: 280 kg/km
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Standard Packing Length: 100 meter coil
- Insulation Color: (Brown, Light Blue)
- Outer Sheath Color: Gray
- Standards: IEC 60502, SSA 1450
