10 sq mm Stranded Copper Cable, Two Core, 0.6/1kV, PVC 70°C Insulated, Black Sheath, 1000 meter | Saudi Cables Company
(524 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

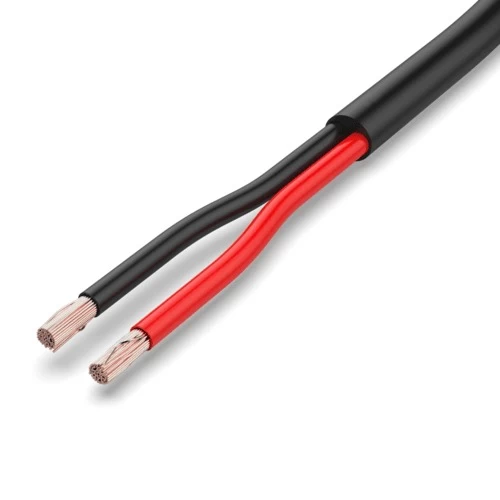

Unarmored stranded copper power cable (CU/PVC/PVC), two cores, 10mm², low voltage 0.6/1kV, fully insulated for high protection against electric leakage. Produced by Saudi Cables Company.
Product description
Unarmored stranded copper power cable (CU/PVC/PVC), produced by Saudi Cables Company (SCC). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: Heat resistive PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18.2 mm
- Weight: 530 kg/km
- Standard Length: 1000 meters
- Insulation Colors: Red, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: CJH2-08A
