1.5 sq mm 0.6/1kV Single Core Electric Cable, Solid Copper Conductor, PVC 85°C Insulated, Red Color, 1000 meter Length | SCC
(521 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

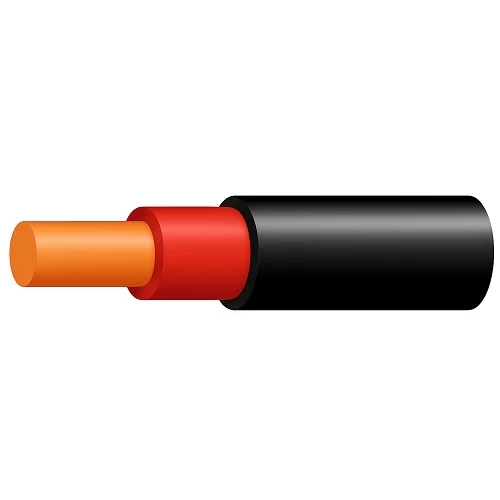

Unarmored solid copper power cable (CU/PVC/PVC), single core, 1.5mm², 0.6/1 kV, produced by Saudi Cables Company, ensures reliable power transmission through pure copper and durable insulation.
Product description
Unarmored solid copper power cable (CU/PVC/PVC), produced by Saudi Cables Company (SCC). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 1.5 mm2
- Number of wires: 1
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.4 mm
- Approx Overall Diameter: 6.4 mm
- Weight: 50 kg/km
- Standard Length: 1000 meters
- Insulation Color: Red
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: AJB1-04A
