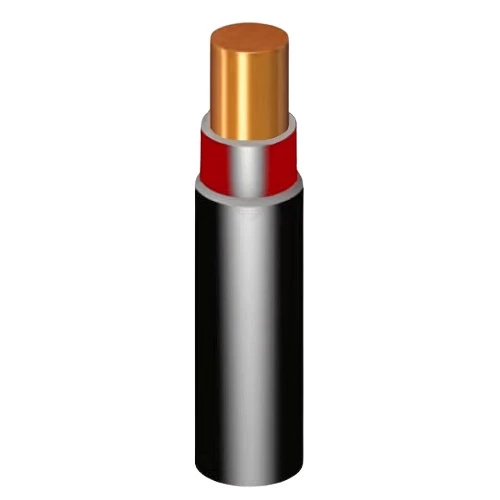

Solid Single Core Copper Cable 6 mm2, 600/1000V, PVC Insulated | Riyadh Cables
(1352 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Solid single core copper cable 1×6 mm2, PVC insulated, red color, it is used in power plugs, and home appliances. available in a variety of sizes and colors with highest quality and best prices, produced by Riyadh Cables Company.
Product description
Solid single core electrical copper cable (CU/PVC/PVC), Blue color, Produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.76 mm
- Nominal Insulation Thickness: 1 mm
- Nominal Sheath Thickness: 1.4 mm
- Approx Overall Diameter: 8 mm
- Weight: 110 kg/km
- Cable Length: 1000 meters
- Phase Core Color: Red
- Standard: IEC 60502-1
