CU/PVC/PVC Solid Copper Electric Cable, 4 Core, 4mm, 0.6/1kV, 1000 meter | RESCAB
(720 Product Views)

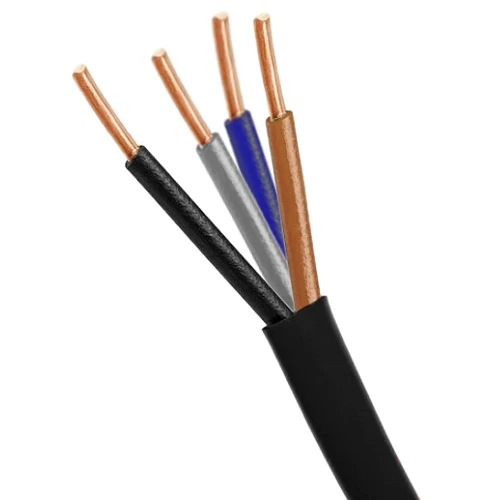

Solid Copper Electric Cable (CU/PVC/PVC), 4 Core, 4 sq mm, Low Voltage 0.6/1kV, manufactured by Red Sea Cables Company (RESCAB). Thanks to its PVC outer sheath, offers effective protection against weather elements and mechanical shocks.
Product description
Solid copper power cable (CU/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of wires: 1
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 17 mm
- Max DC Conductor Resistance at 20°C: 4.61ohm/km
- Weight: 475 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
