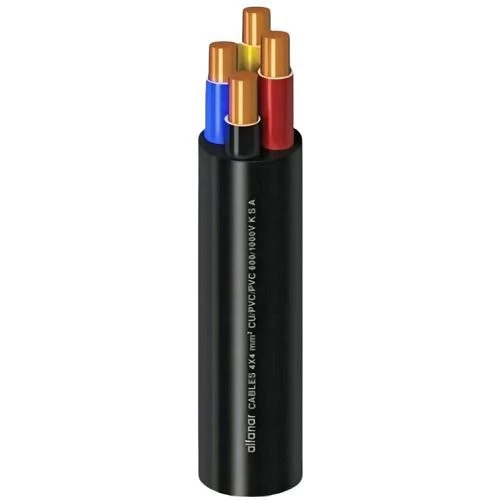

Electrical cable 4x4 mm2 300/500 volts, solid copper conductor, PVC Insulated, PVC sheath, the outer jacket provides protection for the cable from corrosion and external factor, insulation color (red, yellow, blue, black), produced by Alfanar Company.
Product description
Solid electrical copper cable (CU/PVC/PVC), Produced by Alfanar Company according to the international standard, which ensures its quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
- Insulation Material: PVC (Polyvinyl Chloride) 70 ยฐC
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Cable Type: (H05VV-U)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Wires: 1
- Wire Diameter: 2.25 mm
- Nominal Insulation Thickness: 0.8 mm
- Thickness of Inner Covering: 0.4 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 12.9 mm
- Weight: 325 kg/km
- Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
- Insulation Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60227-4
