6 sq mm Two Core Solid Copper Electric Cable 300/500V, PVC 70°C Insulation, Gray Color, 100 meter/Drum | Saudi Cable Company
(502 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

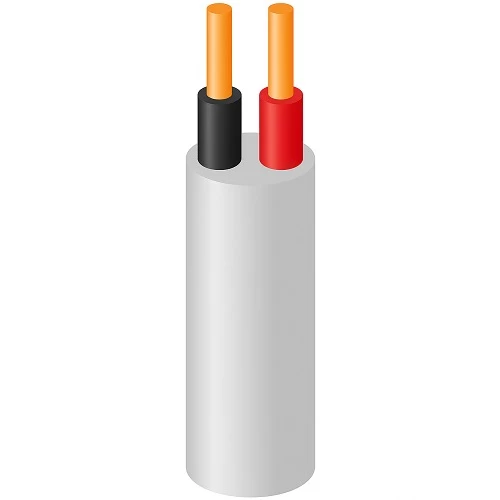

Solid copper electric cable (CU/PVC/PVC), 2 core, 6 sq mm, 300/500V, with PVC 70°C insulation and environmentally resistant gray sheath, 100 meter drum, suitable for distribution boards and construction projects, Produced by Saudi Cables Company.
Product description
Solid copper electrical cable (CU/PVC/PVC). Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications, fixed wiring, concealed in conduits or exposed on insulators, and in switching panels and distribution boards. These cables may be used in wet or dry locations and in outdoor applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 6mm2
- Number of Wires: 1
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 12.4 mm
- Weight: 260 kg/km
- Length: 100 meter / Coil
- Insulation Color: (Red, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: ABH2-07H
