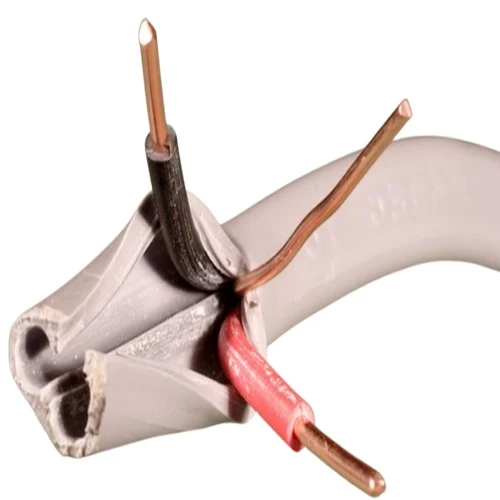

2.5mm2 Flat Twin and Earth Electric Cable, 300/500 Rated Voltage, Two Core, Solid Copper PVC Insulated and Sheathed | Riyadh Cables

Electrical flat twin and earth cable (CU/PVC/PVC), manufactured by Riyadh Cables Company. Produced in accordance with British Standard BS 6004 to ensure the highest quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Used to supply power for various domestic and industrial electrical applications. Its flat shape makes it ideal for installation in tight spaces, occupying less space when installed on exterior or interior walls of buildings. Available in a variety of sizes and colors with highest quality and best prices.

• Conductor: Copper
• Conductor Shape: Solid as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm
• Number of Wires: 1
• Insulation Thickness: 0.8 mm
• Sheath Thickness: 1 mm
• Overall Diameter or Dimensions: Lower Limit 5.2 x 9.8 mm / Upper Limit 6.2 x 11.5 mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 135 kg/km
• Insulation Color: (Red, Black)
• Sheath Color: Gray
• Standard: BS 6004
