3 Core Cable 1mm Size, 300/500 Rated Voltage, Flexible Copper Conductor, PVC Insulated | Riyadh Cables
(1396 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

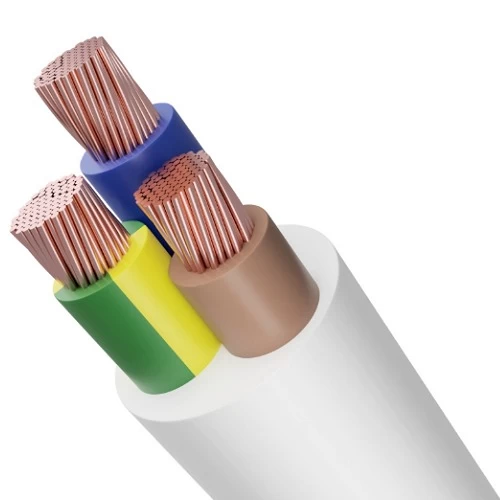

3 core flexible copper cable, 1 mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is brown, blue and yellow/green, it is used for a wide range of residential, commercial, and industrial electrical applications, produced by Riyadh Cables Company.
Product description
Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used for a wide range of residential, commercial, and industrial electrical applications. Available in a variety of sizes and colors with highest quality and best prices.
- Cable Type: H05VV-F
- Conductor: Flexible Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage Rating: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 1 mm
- Number of Wires: 29
- Wire Diameter: 0.20 mm
- Approx Conductor Diameter: 1.3 mm
- Insulation Thickness: 0.6 mm
- Sheath Thickness: 0.8 mm
- Overall Diameter: 8 mm
- Weight: 80 kg/km
- Max DC Conductor Resistance at 20°C: 19.5 ohm/km
- Packing: 100 meter
- Insulation Color: (Blue, Brown, Yellow/Green)
- Outer Sheath Color: White
- Standards: BS 6500, IEC 60227
