1mm 3 Core Electric Cable 300/500 volts, Flexible Copper Conductor, PVC Insulation | Alfanar
(1099 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

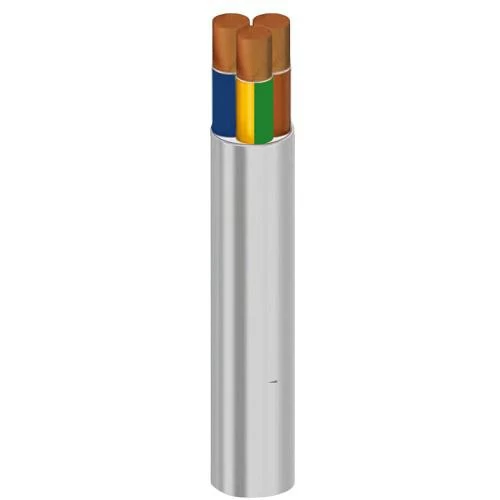

Electric cable 1 mm2 , 3 core 300/500 volts, flexible copper conductor, insulated with PVC, providing excellent electrical insulation, phase core color (brown, blue, yellow/green), produced by Alfanar Company according to European standards and specifications, which ensures its quality and performance.
Product description
Flexible electrical copper cable (CU/PVC/PVC), Produced by Alfanar Company according to European standards and specifications, which ensures its quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Designed for use with mobile electrical units, including pumps and motors. Ideal for applications requiring highly flexible cables, such as household appliances, office equipment, and prefabricated houses. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride) 70 °C
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Cable Type: (H05VV-F)
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 1 mm2
- Number of Wires: 32
- Wire Diameter: 0.2 mm
- Nominal Insulation Thickness: 0.6 mm
- Nominal Sheath Thickness: 0.8 mm
- Overall Diameter: 7.1 mm
- Weight: 85 kg/km
- Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
- Insulation Color: (Brown, Blue, Yellow/Green)
- Standard: BS EN 50525-2-11
