240sq mm 0.6/1kV 4 Core Electrical Cable, Stranded Copper Conductor, PVC Insulated, SWA Armored, Length 250 M | RESCAB
(803 Product Views)

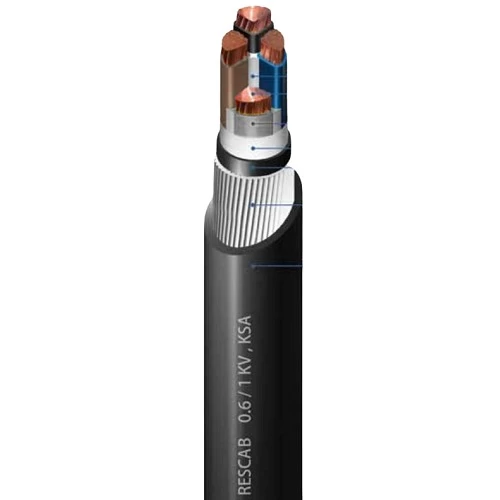

Armoured stranded copper electrical cable (CU/PVC/SWA/PVC), four core, 240sq mm size, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, they are distinguished by their economical cost, reliable performance, and durability.
Product description
Armoured stranded copper power cable (CU/PVC/SWA/PVC), produced by Red Sea Cables (RESCAB) Company according to British standard (BS 5467). Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of Wires: 61
- Nominal Insulation Thickness: 2.2 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 68 mm
- Max DC Conductor Resistance at 20°C: 0.0754 ohm/km
- Weight: 14000 kg/km
- Standard Length: 250 meters
- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
