16 mm Two Core 0.6/1kV Stranded Copper Cable, SWA Armed, PVC Insulation, 1000 M Length | RESCAB
(631 Product Views)

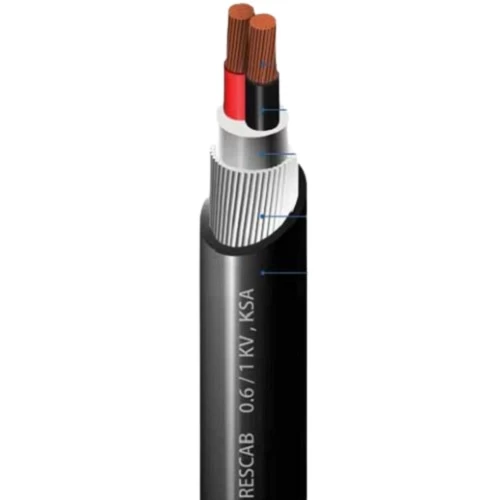

Armoured stranded copper power cable (CU/PVC/SWA/PVC), two core, 16mm2 cross section area, 0.6/1kV, armored with layer of galvanized steel wires (SWA) which offer an exceptional combination of properties that make it the ideal choice, produced by Red Sea Cables (RESCAB) company.
Product description
Armoured stranded copper power cable (CU/PVC/SWA/PVC), Produced by Red Sea Cables (RESCAB) Company. Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Steel Wire Diameter: 1.25 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 23 mm
- Max DC Conductor Resistance at 20ยฐC: 1.15 ohm/km
- Weight: 1190 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Black
- Standard: IEC 60502-1
